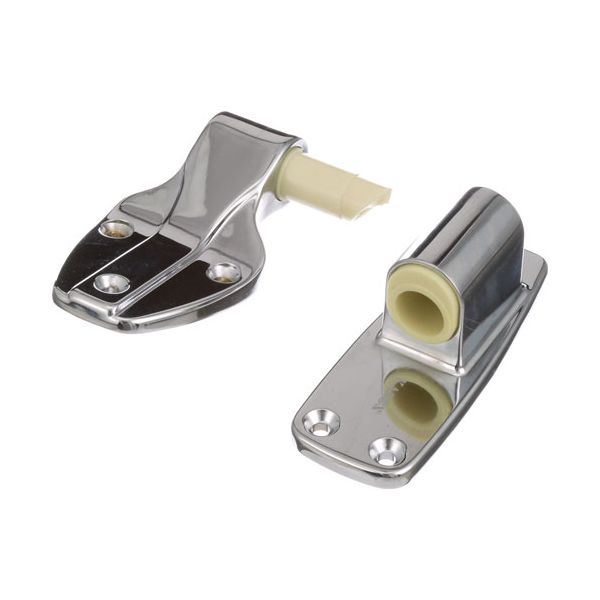

Nor-Lake 083478 Reversible Cam Rise Lift-Off Hinge with 4-1/2" Door Strap

£113.79
In stock
SKU
083478
Kason - 11246000028 Hinge, Strap
Manufacturer:

Dimensions

  • Length: 13.97 cm
  • Width: 13.97 cm
  • Height: 5.715 cm
  • Weight: 0.889 kg
https://partsfe.com/media/catalog/product/n/o/nor-lake-083478-reversible-cam-rise-lift-off-hinge-with-4-1-2-door-strap.jpg

Product Notes

  • Reversible Cam Rise Lift Off Hinge, 5-9/16" Long Od.
  • Door Strap 4-1/2" Outside Edge To Centerline Of Pivot.
  • Strap Has A Plastic Cam Rise Stem In It Which Goes Into The
  • Flange., Number "1246" Is Cast On Strap & Flange.
  • Flush Offset, 3 Hole Mount.
  • To Reverse Remove Cap And Push Out Cam, Replace Cam
  • On Other Side Of Strap And Replace Cap.
  • Door Hinge, Short Strap, 3 Hole Mount
  • Frame Mount 5-1/2"Od Wide, 3 Hole
  • For Replacement Cam Kit Order #28-2410
  • 1246
  • Norlake Kl
