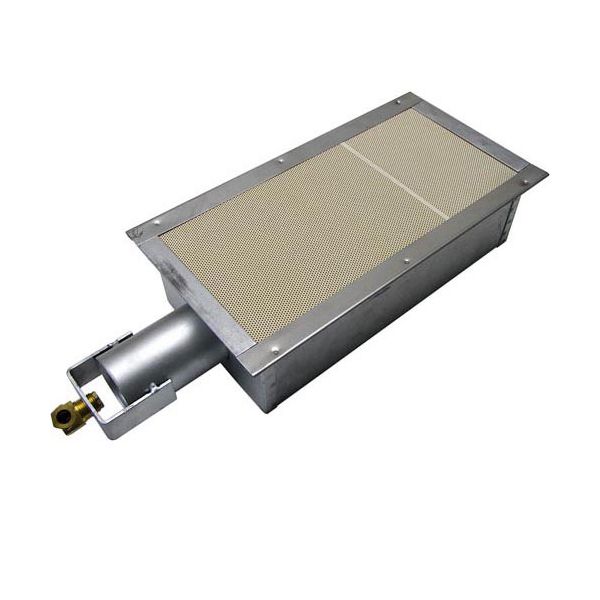

ROYAL RANGE 1603 Infra-Red Broiler Burner, 12-3/4" x 7" OD, 5.6 LBS.

Product Notes

• Infra-Red Broiler Burner
• Top Of Box, 12-3/4" X 7" Od, Weight 5.6 Lbs.
• Ceramic Area 11-1/4" X 5-1/8"
• Bottom Of Box 11-11/16" X 5-3/4" X 3-3/8"H
• Venturi 2.122" Dia Od X 2-5/16"L, W/ Bracket 4-3/16"L
• Orifice #48 X 3/8" Cct
• Total Length W/O Orifice 16-1/2"
• American Range
• Broiler Arcm Cheesemelter, Avb Vertical Broiler.
• ***Verify The Size Of The Burner The Customer Is Ordering -
• American Range Has Conflicting Information On Their Ir
• Burners.
• May Need Part Number 263692***
