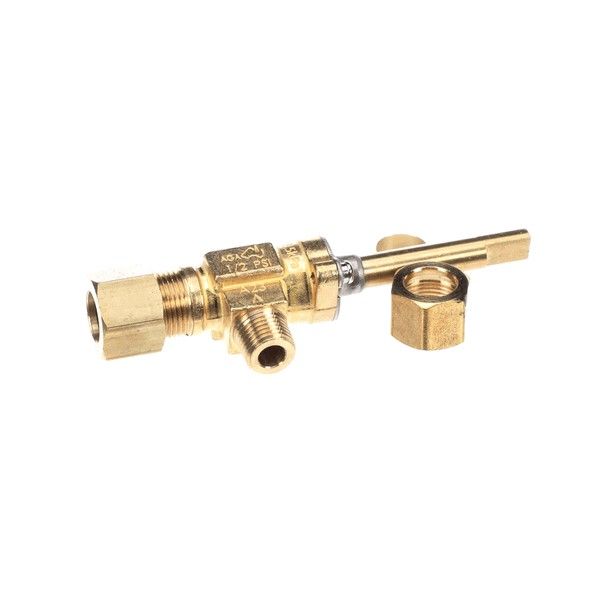

Vulcan Hart VH108379-1 Burner Valve 1/4" X 1/2"

£92.10
In stock
SKU
VH108379-1
Vulcan Hart VH108379-1 Burner Valve serves as a component for regulating gas flow in commercial broilers and ranges to a achieve precise flame regulation for effective cooking. This valve operates through OFF/ON rotation and its downward stem position while connecting through a 1/4" MPT x 1/2" CCT with a 90-degree angle. The burner valve operates reliably in models HCB44, GH56 and SG7856A through its combination of a 2-3/16" durable stem and 0.240" stem size.
Manufacturer:

Dimensions

  • Length: 10.16 cm
  • Width: 3.81 cm
  • Height: 2.54 cm
  • Weight: 0.181 kg
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-vh108379-1-burner-valve-1-4-mpt-x-1-2-cc_1.jpg

Product Notes

  • Burner Valve,
  • [ 1/4" Mpt X 1/2" Cct ] [ Rotation Off/On] [Stem Position
  • Down ] [Stem Size .240" ] [Ctr Inlet To End Of Stem 3" ]
  • Angle - 90] Stem 2-3/16" Long.
  • Does Not Include Orifice Hood.
  • Does Not Include 1/2" Cct Nut & Ferrule.
  • If Needed, We Only Stock A 1/2" Cct Union Elbow Which Has
  • Qty 2Ea 1/2" Cct Nuts & Ferrules # 26-3771
  • Vulcan Broiler Hcb44 (Old 7844L), Hcbo40 (Old 7840Al).
  • Range 7856A, Gh3/72, Gh3/72C, Gh3/72S, Gh56, Gh56S, Gh6,
  • Gh6C,Gh6S, Ghm3/72, Ghm56, Ghm6, Sg7856A.
