American Range A11124 Natural Gas-LP Pilot Burner Assembly W/Left Flame Pattern 3/16"/1/4" CCT
Special Price £36.26 Regular Price £37.00
In stock
SKU
A11124
Manufacturer:

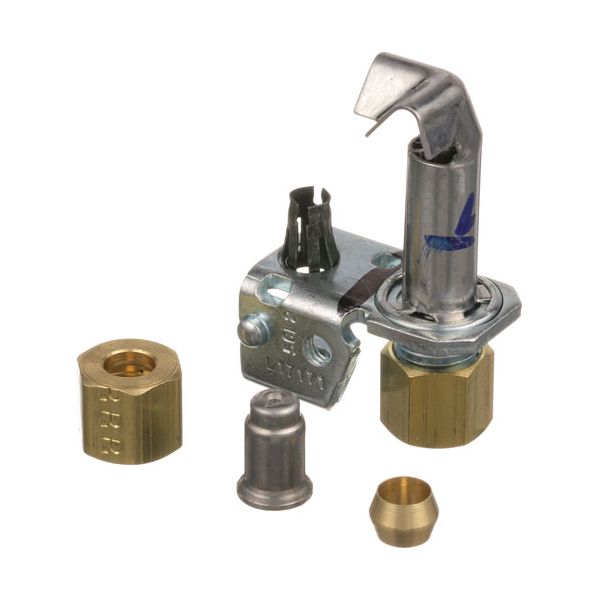

The American Range A11124 Pilot Assembly NAT/LP with Left Flame Pattern, 3/16/1/4 CCT is a gas ignition part that is installed in commercial systems to enable the safe start of the burner. Its main use is to maintain a small continuous pilot flame, which is accurate in starting the main burner, which can be fueled with natural or liquid propane. The assembly is mounted in the burner section with specific connection points of 3/16 and 1/4 to make sure that it is correctly aligned.
Dimensions
- Length: 3.175 cm
- Width: 1.905 cm
- Height: 5.08 cm
- Weight: 0.091 kg
Product Notes
- Nat/Lp Pilot, Factory #5Sl2, Tube Size 3/16"/1/4" Cct,
- Flame Pattern Left
- Picture Wrong On Pages 31, 475, And 645 Of 2010-2011 Hot
- Side Catalog. Pilot Does Not Include Electrode And Wire,
- But Otherwise Looks The Same.
- If Electrode & Wire Is Needed, Order Pilot Assy
- # 51-1214
- Dynamic Cooking Systems
- Broiler Cheesemelter, Salamander.
- Imperial
- Broiler Series: Icma Cheesemelter, Isb Salamander.
- Oven Series: Ihr (Range W/Standard Oven).
